This high-performance tool covers the new generation of instrument clusters from 2002.
Included are GolfV,Touran, Passat B6, Jetta, the new Seat models, such as Altea II and the new Skodas.
VAG dash CAN Revision History:
Latest Version: V5.17 2011-3
V5.14 - 2010-7
V5.05 - 2010-1
VAG dash CAN Function
1. recalibrate the odometer
2. add keys to the car even though you don’t have all existing keys available
3. do key adaptation without 5 minutes delay on new keys
4. read out the login / secret key code (SKC)
5. write the vehicle identification number and the immobiliser number
6. download and store the entire immobiliser block decrypted
7. clone instrument clusters by writing the immobiliser block from a file

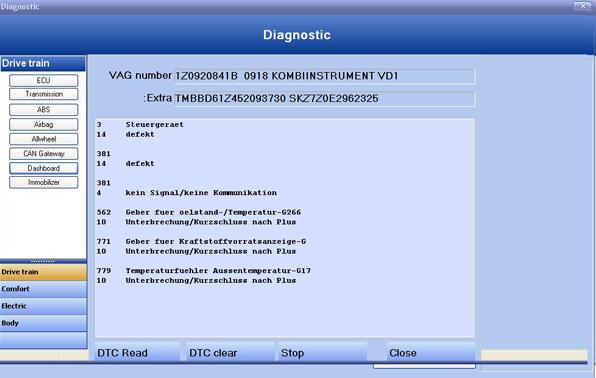

8. read out trouble codes of CAN-ECU´s and erase them
VAG dash CAN Compatible Vehicles
VW / SEAT / SKODA
Please press this button in order to read out the VDO instrument clusters of the last generation.
An example is the Golf Mark V from 2003 up to 06.2006.
Some SEAT and SKODA models are equipped with clusters of that type until MY 2009.
PASSAT
Please press this button in order to read out Passat B6.
In those cars you cannot get immobiliser information from the instrument clusters, since the immobiliser unit is part of the convenience module.
AUDI A3
Please press this button in order to read out AUDI A3 instrument clusters of the brand VDO.
AUDI-A4
Please press this button in order to read out AUDI A4 instrument clusters BOSCH RB4.
PHAETON/TOUAREG
Please press this button in order to read out Phaeton and Touareg instrument clusters BOSCH RB4.
BOSCH EDC15
Diesel Control units are very often used since 1999. Those units cover up most of the diesel vehicles at VAG.
SEAT and SKODA equipped their cars some years longer with ecu´s of that kind.
BOSCH EDC16
Those Diesel Control units are built into cars since 2002. They are the most frequently use ECUs in Diesel Cars of the latest generation.

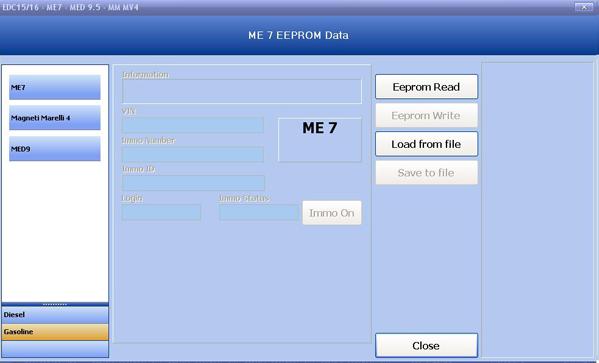

ME7.* /MED 9.5
The engine ecu type BOSCH ME7.* was used in petrol cars such as Golf IV or Audi TT. You can read out following types of ecu´s: ME7.5, ME7.1, ME7.5.1, and ME7.1.1.
The ecu ME7.1.1 of the Golf V is not implemented yet.

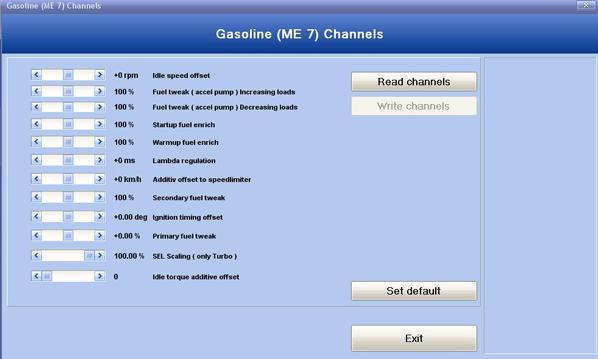

ME7 CHANNELS
When you click on this button, you reach the EEprom adaption channels of the BOSCH ME7.* engine control unit.
Those are for example the SEL scaling and the idle speed offset.

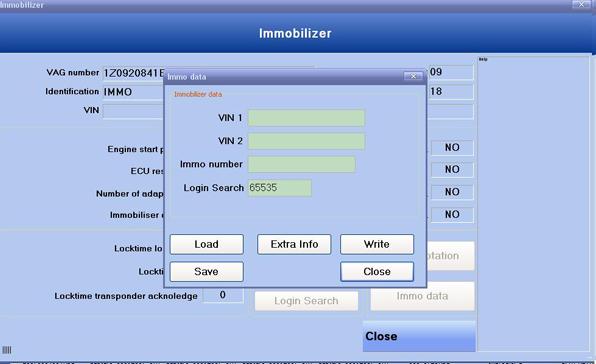

IMMOBILISER BOXES
When you click on this button you can read out the login code from the single standing Immobilizer units. Whit boxes from Audi A4 with 12pin connector and boxes from LT. You can read out boxes from 1994-1998, but only when an adapted key is inserted into the lock.
FAQ:
Q: How to install the software? What i have to pay attention to?
A: You must use windows XP system computer,32bit. Please close anti-virus software when install.
Q: What i have to pay attention when use this tool?
A: Please install software first then connect device.
Q: What i should do when encounter install problem?
A: Please change a computer for try first. If do have problem,please contact us. We will do whatever we can do to resolve your problem.
